Setup reference for agents and manual configuration

The README provides the copy-and-paste setup request. Use this reference for exact environment variables, per-printer credentials, manual MCP client configuration, Docker, and troubleshooting. Preserve the user's existing MCP configuration and use the current harness's supported configuration format.

Installation

Prerequisites

• Node.js 24, recommended (the package supports Node.js 18 or later, CI tests 18 through 24, and the Docker image uses 24)
• npm
• A slicer (only needed to slice): PrusaSlicer, OrcaSlicer, FULU OrcaSlicer-bambulab, Bambu Studio, Slic3r, or CuraEngine. A file that is already sliced can be uploaded and printed without a slicer on the MCP host. See the slicing guide.
• Blender with a Blender MCP server (optional): only for the blender_mcp_* tools. See Blender MCP.

Run without installing (npx)

The fastest way to get started. No global install is required:

npx -y mcp-3d-printer-server

MCP clients normally launch this command for you over stdio. Set environment variables in the client's MCP configuration or in a .env file in the server's working directory (see Configuration).

Install globally from npm

npm install -g mcp-3d-printer-server

The package installs three commands: mcp-3d-printer-server (stdio by default), mcp-3d-printer-server-http (streamable HTTP), and mcp-3d-printer-server-sse (a legacy name that also starts the streamable HTTP runtime).

Install from source

git clone https://github.com/DMontgomery40/mcp-3D-printer-server.git
cd mcp-3D-printer-server
npm ci
npm run build
npm link

npm link makes the mcp-3d-printer-server command available globally without publishing to npm. Build from a clean checkout before linking; dist/ is generated and not tracked in Git.

---

Choose your printer backend

PRINTER_TYPE selects the printer adapter. Every printer tool also accepts type, host, port, and api_key arguments, so one server can reach more than one printer; values you omit fall back to the environment.

PRINTER_PORT defaults to 80 for every backend. Set it explicitly when your system listens elsewhere, such as Moonraker on 7125 or Repetier-Server on 3344.

PRINTER_TYPE	System	Connection	Credentials	Testing evidence
bambu	Bambu Lab	MQTT over TLS on port 8883, FTPS on port 990	BAMBU_SERIAL, BAMBU_TOKEN (LAN access code), BAMBU_MODEL	Most tested. Maintainer hardware testing, shared with the Bambu-only fork. The FTPS fix for #22 is tested against a local FTPS server; confirmation on the reporter's X1C is outstanding.
octoprint	OctoPrint	HTTP REST API, port 80 on OctoPi	API_KEY, sent as X-Api-Key	Community-reported. Used against a real OctoPrint instance in #4.
klipper	Klipper (Moonraker)	HTTP API, usually port 7125	None sent; Moonraker must trust the MCP host	Community-reported. Used with a Creality K1 Max through Moonraker in #16.
prusa	PrusaLink / Prusa Connect	HTTP for local PrusaLink, HTTPS for connect.prusa3d.com or port 443	API_KEY, sent as X-Api-Key and as a bearer token	Community-reported. PrusaLink 0.8.1 status fixed after #11; Prusa Connect setup discussed in #9.
duet	Duet	HTTP, port 80	None sent	Unverified. No hardware reports yet.
repetier	Repetier-Server	HTTP, usually port 3344	API_KEY, sent as the apikey query parameter	Unverified. No hardware reports yet.
creality	Creality	HTTP, port 80	API_KEY, sent as a bearer token	Unverified. No hardware reports yet.

Bambu Lab has the most hardware testing. The other adapters call each system's HTTP API as described in Printer backend setup, and hardware evidence comes from community reports. If a backend misbehaves, please open an issue with the printer, firmware or host software version, and the tool error.

---

Configuration

Create a .env file in the directory where you run the server, or pass environment variables in your MCP client configuration. Configure only the block for your backend.

# --- Printer backend (pick one PRINTER_TYPE) ---
PRINTER_TYPE=octoprint            # octoprint, klipper, duet, repetier, bambu, prusa, creality
PRINTER_HOST=192.168.1.100        # Printer or host-software address
PRINTER_PORT=80                   # 7125 for Moonraker, 3344 for Repetier-Server
API_KEY=your_api_key              # OctoPrint, Repetier, Prusa, Creality

# --- Bambu Lab only ---
# BAMBU_SERIAL=01P00A123456789    # Printer serial number
# BAMBU_TOKEN=your_access_code    # LAN access code from the printer screen
# BAMBU_MODEL=p1s                 # Required for Bambu print operations
# BED_TYPE=textured_plate         # textured_plate, cool_plate, engineering_plate, hot_plate
# BAMBU_NOZZLE_TYPE=hardened_steel # Only if you replaced the stock nozzle (P1S/P1P/A1 ship stainless_steel)
# NOZZLE_DIAMETER=0.4             # 0.2, 0.4, 0.6, or 0.8 for printing and heating

# --- Print and heating safety (see "Print and heating safety" below) ---
# PRINT_REQUIRE_CONFIRMATION=0    # Headless only: skip ordinary confirmations (all printers)
# BAMBU_REQUIRE_CONFIRMATION=0    # Headless only: the same, for Bambu printers only
# PRINTER_MAX_NOZZLE_TEMP=300     # Non-Bambu heater ceilings in °C (Bambu uses per-model limits)
# PRINTER_MAX_BED_TEMP=120
# PRINTER_MAX_CHAMBER_TEMP=60

# --- Slicer (only for slice_stl, process_and_print_stl, and Bambu auto-slicing) ---
# SLICER_TYPE=prusaslicer         # prusaslicer, slic3r, orcaslicer, orcaslicer-bambulab, bambustudio, cura
# SLICER_PATH=/path/to/slicer/executable
# SLICER_PROFILE=/path/to/profile # Bambu-compatible slicers: a process profile only
# FILAMENT_PROFILE=/path/to/filament.json
# BAMBU_PROFILES_ROOT=            # Profile tree containing BBL/, if not found from SLICER_PATH
# BAMBU_TEMPLATE_DIR=~/Sync/bambu/templates

# --- MCP transport ---
# MCP_TRANSPORT=stdio             # stdio (default) or streamable-http
# MCP_HTTP_HOST=127.0.0.1
# MCP_HTTP_PORT=3000
# MCP_HTTP_PATH=/mcp

# --- Optional standard Blender MCP server ---
# BLENDER_MCP_COMMAND=/full/path/to/uvx
# BLENDER_MCP_ARGS=["mcp-for-blender"]
# BLENDER_MCP_TIMEOUT_MS=120000

Environment variables reference

Variable	Default	Required	Description
PRINTER_TYPE	octoprint	Yes	Printer adapter: octoprint, klipper, duet, repetier, bambu, prusa, or creality
PRINTER_HOST	localhost	Yes	Printer or host-software address. Prusa also accepts connect.prusa3d.com or a full https:// URL
PRINTER_PORT	80	Depends on backend	HTTP port for non-Bambu backends. Set 7125 for Moonraker and 3344 for Repetier-Server
API_KEY		OctoPrint, Repetier, Prusa, Creality	Backend API key or token. Klipper and Duet adapters do not send one
BAMBU_SERIAL		Bambu	Printer serial number
BAMBU_TOKEN		Bambu	LAN access code shown on the printer
BAMBU_MODEL		Bambu printing and Bambu slicing	Printer model: p1s, p1p, x1c, x1e, a1, a1mini, h2d. Required for print_3mf, start_print, upload with print: true, positive Bambu heating, and Bambu-compatible slicing. Slicing also accepts p2s, h2s, and h2c when the installed slicer has that preset. If omitted and the MCP client supports elicitation, the server asks. It selects the slicer machine preset and is checked against the live printer before printing.
BED_TYPE	textured_plate	No	Bambu bed plate: textured_plate, cool_plate, engineering_plate, hot_plate. print_3mf requires it to match the sliced plate's bed metadata
NOZZLE_DIAMETER	0.4	No	Nozzle diameter in mm. Selects the Bambu machine preset; printing and heating accept 0.2, 0.4, 0.6, or 0.8 and check it against the live printer
PRINT_REQUIRE_CONFIRMATION	confirmation on	No	Only an explicit 0 skips the ordinary human confirmation before print starts and positive heating, on every printer type. The first print after a finished job still asks. See print and heating safety
BAMBU_REQUIRE_CONFIRMATION	confirmation on	No	Bambu-only form of PRINT_REQUIRE_CONFIRMATION=0
BAMBU_NOZZLE_TYPE	model preset's stock nozzle	No	Installed nozzle for slicing: stainless_steel, hardened_steel, tungsten_carbide, or brass. Set it if you upgraded the nozzle; printing requires the job's nozzle type to match the printer's report
BAMBU_DISPATCH_CHECK_MS	15000	No	How long to watch the printer's reports after a print command to confirm it started or was refused (0 to 60000; 0 skips the check)
PRINT_CONFIRMATION_TIMEOUT_MS	600000 (10 minutes)	No	How long a person has to answer a confirmation prompt, from 1000 to 3600000. When it runs out, nothing is sent and the error says so
PRINTER_MAX_NOZZLE_TEMP	300	No	Nozzle ceiling in °C for non-Bambu printers. Only the server environment can change it; an invalid value refuses printing and positive heating
PRINTER_MAX_BED_TEMP	120	No	Bed ceiling in °C for non-Bambu printers
PRINTER_MAX_CHAMBER_TEMP	60	No	Chamber ceiling in °C for non-Bambu printers
SLICER_TYPE	orcaslicer-bambulab when PRINTER_TYPE=bambu, otherwise prusaslicer	No	prusaslicer, slic3r, orcaslicer, orcaslicer-bambulab (FULU), bambustudio, or cura. See slicer aliases
SLICER_PATH	Common install paths for FULU/Orca and Bambu Studio; none for other slicers	To slice	Slicer executable. Per-call slicer_path requires MCP_ALLOW_EXECUTABLE_ARG=1
SLICER_PROFILE		No	Bambu-compatible slicers: one process profile JSON; the machine preset always comes from the model and nozzle. Generic OrcaSlicer: machine.json;process.json, optionally |filament.json. See the slicing guide
FILAMENT_PROFILE		No	Filament profile path(s) loaded with --load-filaments, ;-separated in slot order. Alias: SLICER_FILAMENT_PROFILE
SLICER_TIMEOUT_MS	600000	No	Slicer process deadline in milliseconds
BAMBU_PROFILES_ROOT	found from SLICER_PATH	No	Profile tree containing BBL/ for the active Bambu-compatible slicer. Set it for AppImages or non-standard installs. It is never replaced by another installation's tree
BAMBU_SLICER_PROFILE_DIRS	the slicers' user system/BBL directories	No	Directories (separated with your OS path delimiter) searched for custom process and filament parents, never for machine presets. Set it empty to disable the search
BAMBU_TEMPLATE_DIR	~/Sync/bambu/templates	No	Local template registry for slice_with_template, list_templates, save_template, and get_slice_settings
BAMBU_TEMPLATE_3MF_PATH		No	Default template 3MF whose slicer settings are reused as the process profile
FULU_ORCA_PATH		No	FULU OrcaSlicer-bambulab executable when SLICER_PATH is unset. Aliases: ORCASLICER_BAMBULAB_PATH, ORCA_SLICER_BAMBULAB_PATH
FULU_ORCA_PLUGIN_DIR		No	Directory with FULU's runtime payload, such as OrcaSlicer.app/Contents/MacOS. Alias: ORCASLICER_BAMBULAB_PLUGIN_DIR
PJARCZAK_MAC_RUNTIME_DIR	~/Library/Application Support/OrcaSlicer/macos-bridge/runtime	No	Installed FULU macOS runtime directory
FULU_BAMBU_BRIDGE_COMMAND		FULU bridge tools	Trusted command that starts the FULU BambuNetwork bridge host. See the FULU guide
MCP_ALLOW_EXECUTABLE_ARG	disabled	No	Accept per-call executable selectors (slicer_path, bridge_command, and bridge probe paths). Leave off for normal use; see executable settings
MCP_ALLOW_BRIDGE_COMMAND_ARG	disabled	No	Legacy opt-in for bridge commands and bridge-derived probe paths only
TEMP_DIR	private folder under the system temporary directory	No	Intermediate files. Each server instance gets its own folder unless you set this
MCP_TRANSPORT	stdio	No	stdio or streamable-http
MCP_HTTP_HOST	127.0.0.1	No	HTTP bind address (HTTP transport only)
MCP_HTTP_PORT	3000	No	HTTP port. The legacy -http and -sse commands also read HTTP_PORT and SSE_PORT
MCP_HTTP_PATH	/mcp	No	HTTP endpoint path
MCP_HTTP_STATEFUL	true	No	Stateful HTTP sessions
MCP_HTTP_JSON_RESPONSE	true	No	Return JSON responses instead of event streams where possible
MCP_HTTP_ALLOWED_ORIGINS		No	Comma-separated allowed browser origins. Requests with any other Origin header are rejected; requests without one are accepted
BLENDER_MCP_COMMAND		No	Trusted executable for a standard stdio Blender MCP server, such as the full path to uvx
BLENDER_MCP_ARGS	[]	No	JSON array of arguments, such as ["mcp-for-blender"]; no shell parsing
BLENDER_MCP_TIMEOUT_MS	120000	No	Connection, discovery, and call deadline, 100 to 300000 ms
BLENDER_MCP_BRIDGE_COMMAND		No	Legacy trusted shell command for blender_mcp_edit_model; separate from the standard MCP integration

The Blender MCP server also reads its own BLENDER_HOST and BLENDER_PORT (default localhost:9876) if the addon listens elsewhere. This server passes only BLENDER_* settings to it, never printer credentials. See the Blender guide.

---

Print and heating safety

Every print start and positive heating command goes through the same gate on every backend. Heater-off (a target of 0) and cancel_print are never gated, and cancelling also cancels checked prints that are still waiting to start.

• Human confirmation. The server asks a person through MCP elicitation before each print start and positive heating command. Clients without elicitation support are refused with instructions. PRINT_REQUIRE_CONFIRMATION=0 (all printers) or BAMBU_REQUIRE_CONFIRMATION=0 (Bambu only) opts out for deliberately headless setups. A printer that reports a finished job (Moonraker complete or cancelled, PrusaLink FINISHED or STOPPED, Bambu FINISH) always asks, even with the opt-out, because the last part may still be on the bed.
• File inspection. The server inspects a private copy of the exact G-code or 3MF plate it will start: every S and R heater target, tool changes, and RepRapFirmware and Klipper heater commands. Klipper macro parameters that name a heater are checked; macro bodies stored on the printer cannot be.
• Ceilings. Nozzle, bed, and chamber targets have independent ceilings: 300, 120, and 60 °C by default on non-Bambu printers (PRINTER_MAX_NOZZLE_TEMP, PRINTER_MAX_BED_TEMP, PRINTER_MAX_CHAMBER_TEMP), and per-model hardware limits on Bambu printers. Material ceilings also apply, such as 260 °C for PLA. Only the server environment can change a ceiling; tool arguments and G-code never raise one.
• Declared material. Printing and positive nozzle heating need a material: slicer metadata in the G-code (; filament_type = PETG) or the material argument, which must not contradict the file. A declaration cannot prove which spool is physically loaded.
• Printer state. Printing, paused, errored, offline, or unreadable printers are refused. On Bambu printers, a fresh MQTT report must match the model, serial, nozzle, and loaded filament, before and after the confirmation and again before dispatch.
• Files already on the printer. start_print downloads the file, inspects it, and starts a uniquely named checked copy on Bambu Lab, OctoPrint, Klipper (Moonraker), and Duet. Repetier, Prusa, and Creality refuse remote starts because no verified download route exists; upload the local G-code with print: true.
• Expected temperatures. process_and_print_stl refuses before uploading when extruder_temp or bed_temp differs from the sliced job's highest target.

Known gaps: Klipper macro bodies and RepRapFirmware stored tool temperatures (used when a job selects a tool with T0 without setting a target first) live on the printer and cannot be inspected. Activation-only M568 and M144 commands are refused for that reason.

Evidence: the gate is covered by unit tests and MCP-level tests with mocked MQTT and FTPS boundaries and loopback HTTP printer APIs. On one real P1S, the Bambu path read fresh status, refused a job sliced for the wrong nozzle type, asked for confirmation, and uploaded the checked file. The firmware then refused the unsigned start command because Developer Mode was off. Acceptance at a mocked boundary does not prove firmware behavior, and the other printer systems have not been exercised on real hardware in this release.

---

MCP client configuration

Add the server to your MCP client (Claude Desktop, Claude Code, Cursor, Codex, or any MCP-compatible client). JSON-based clients use an mcpServers entry with the command, arguments, and environment. This OctoPrint example shows the shape:

{
  "mcpServers": {
    "3dprint": {
      "command": "npx",
      "args": ["-y", "mcp-3d-printer-server"],
      "env": {
        "PRINTER_TYPE": "octoprint",
        "PRINTER_HOST": "192.168.1.100",
        "PRINTER_PORT": "80",
        "API_KEY": "your_octoprint_api_key"
      }
    }
  }
}

Replace the env block with the values for your backend:

Backend	env values
OctoPrint	PRINTER_TYPE=octoprint, PRINTER_HOST, PRINTER_PORT (80 on OctoPi, 5000 for octoprint serve), API_KEY
Klipper (Moonraker)	PRINTER_TYPE=klipper, PRINTER_HOST, PRINTER_PORT=7125
Duet	PRINTER_TYPE=duet, PRINTER_HOST, PRINTER_PORT if not 80
Repetier-Server	PRINTER_TYPE=repetier, PRINTER_HOST, PRINTER_PORT=3344, API_KEY
Bambu Lab	PRINTER_TYPE=bambu, PRINTER_HOST, BAMBU_SERIAL, BAMBU_TOKEN, BAMBU_MODEL
PrusaLink	PRINTER_TYPE=prusa, PRINTER_HOST (printer IP), API_KEY
Prusa Connect	PRINTER_TYPE=prusa, PRINTER_HOST=connect.prusa3d.com, PRINTER_PORT=443, API_KEY
Creality	PRINTER_TYPE=creality, PRINTER_HOST, PRINTER_PORT if not 80, API_KEY

A Bambu Lab example with FULU OrcaSlicer-bambulab slicing:

{
  "mcpServers": {
    "3dprint": {
      "command": "npx",
      "args": ["-y", "mcp-3d-printer-server"],
      "env": {
        "PRINTER_TYPE": "bambu",
        "PRINTER_HOST": "192.168.1.100",
        "BAMBU_SERIAL": "01P00A123456789",
        "BAMBU_TOKEN": "your_lan_access_code",
        "BAMBU_MODEL": "p1s",
        "SLICER_TYPE": "orcaslicer-bambulab",
        "SLICER_PATH": "/Applications/OrcaSlicer.app/Contents/MacOS/OrcaSlicer"
      }
    }
  }
}

Codex uses TOML instead of JSON. Add a [mcp_servers.<name>] table to config.toml, or manage servers with codex mcp:

[mcp_servers.3dprint]
command = "npx"
args = ["-y", "mcp-3d-printer-server"]
env = { PRINTER_TYPE = "klipper", PRINTER_HOST = "192.168.1.50", PRINTER_PORT = "7125" }

Claude Code can add the server from the command line:

claude mcp add 3dprint -e PRINTER_TYPE=klipper -e PRINTER_HOST=192.168.1.50 -e PRINTER_PORT=7125 -- npx -y mcp-3d-printer-server

Where the configuration lives depends on your client and OS:

Client / scope	macOS / Linux location	Windows location
Claude Desktop	~/Library/Application Support/Claude/claude_desktop_config.json (macOS)	%APPDATA%\Claude\claude_desktop_config.json
Claude Code (project-shared MCP)	.mcp.json in the project root	.mcp.json in the project root
Claude Code (user/local MCP)	~/.claude.json; see Claude Code MCP configuration	%USERPROFILE%\.claude.json
Cursor (project)	.cursor/mcp.json in the project root	.cursor\mcp.json in the project root
Cursor (global)	~/.cursor/mcp.json	%USERPROFILE%\.cursor\mcp.json
Codex (user; CLI, IDE extension, app)	~/.codex/config.toml; see Codex MCP configuration	%USERPROFILE%\.codex\config.toml
Codex (project, trusted projects only)	.codex/config.toml in the project root	.codex\config.toml in the project root

Restart or reload your client after editing its configuration. For Codex, run /mcp or codex mcp list to confirm the server loaded.

Executable settings stay in server configuration

Slicer paths, the FULU bridge command, and Blender MCP commands select which local program this server launches. By default they are read only from the server's environment. A per-call slicer_path, bridge_command, or bridge probe path returns an error that names the opt-in flag unless MCP_ALLOW_EXECUTABLE_ARG=1 is set. Accepting those arguments would let anything steering the model, such as a downloaded model's description or 3MF metadata, choose a program to run. Set the flag only for trusted, interactive diagnostics. The standard Blender MCP command and arguments are always server configuration.

Optional code mode

Use the harness's built-in code mode or equivalent when available. Otherwise, an agent may suggest a compatible, maintained integration as an optional way to discover and compose tools; check that integration's current setup instructions first. Direct MCP use is fully supported; code mode is not required. See code execution with MCP for the approach.

---

Printer backend setup

OctoPrint

1. In OctoPrint, open Settings and create an application key under Application Keys, or copy the global key under API.
2. Set PRINTER_TYPE=octoprint, PRINTER_HOST, and API_KEY. OctoPi serves on port 80; a directly run octoprint serve usually listens on 5000.

The adapter connects over plain HTTP and sends the key as X-Api-Key. It calls /api/printer for status (state and temperatures, not job progress), /api/files to list files, /api/files/local to upload (optionally selecting and printing), /api/files/local/<file> to start a file, /downloads/files/local/<file> to download a stored file for inspection before start_print, /api/job to cancel, and /api/printer/bed or /api/printer/tool (nozzle targets go to tool0) for temperature targets. The file list returns every file OctoPrint reports, which can be large for big libraries (#4).

Klipper (Moonraker)

1. Make sure Moonraker is reachable from the machine running the MCP server, usually on port 7125.
2. The adapter does not send an API key. Allow the MCP host in Moonraker's [authorization] trusted_clients, or use an installation without Moonraker authorization.
3. Set PRINTER_TYPE=klipper, PRINTER_HOST, and PRINTER_PORT=7125.

Status comes from /printer/info, which reports the Klipper host state (for example ready) but not job progress or temperatures; #12 requests richer job status. The safety gate reads /printer/objects/query?webhooks&print_stats to refuse a printer that is printing, paused, or in error. Other calls: /server/files/list, /server/files/upload, /server/files/gcodes/<file> (download for inspection before start_print), /printer/print/start, /printer/print/cancel, and SET_HEATER_TEMPERATURE through /printer/gcode/script for bed and extruder.

Duet

Set PRINTER_TYPE=duet, PRINTER_HOST, and PRINTER_PORT if not 80. The adapter targets the Duet Software Framework (DuetWebServer) REST API and sends no password. It calls GET /machine/status, GET /machine/directory/0:/gcodes to list files, GET and PUT /machine/file/<path> to download and upload, and POST /machine/code with a raw-text G-code body (M32 to start, M0 to cancel, M140/M104 for temperatures). The routes follow DuetSoftwareFramework's MachineController; standalone RepRapFirmware rr_* routes are not supported. They have not been verified against Duet hardware; please report which firmware and host mode you tested.

Repetier

Set PRINTER_TYPE=repetier, PRINTER_HOST, PRINTER_PORT (Repetier-Server usually uses 3344), and API_KEY from Repetier-Server. The adapter sends the key as an apikey query parameter to /printer/api/ with actions such as listPrinter, getPrinterInfo, ls, startJob, stopJob, setBedTemp, and setExtruderTemp. The adapter does not add a printer slug to the path, and it has not been verified against a Repetier-Server install. It has no verified download route, so start_print of a file already on the server is refused; upload the local G-code with print: true.

Bambu Lab

Bambu Lab printers use local MQTT (port 8883, TLS) for status and commands and FTPS (port 990, implicit TLS) for uploads. You need the printer's IP address, serial number, LAN access code, and model.

Enable LAN Only Mode and Developer Mode

Enable LAN Only Mode and, on firmware with authorization controls, Developer Mode so third-party clients can send commands. Older firmware may expose the LAN interfaces without a separate Developer Mode toggle. Follow the model-specific LAN setup and Developer Mode instructions; firmware and menu names vary.

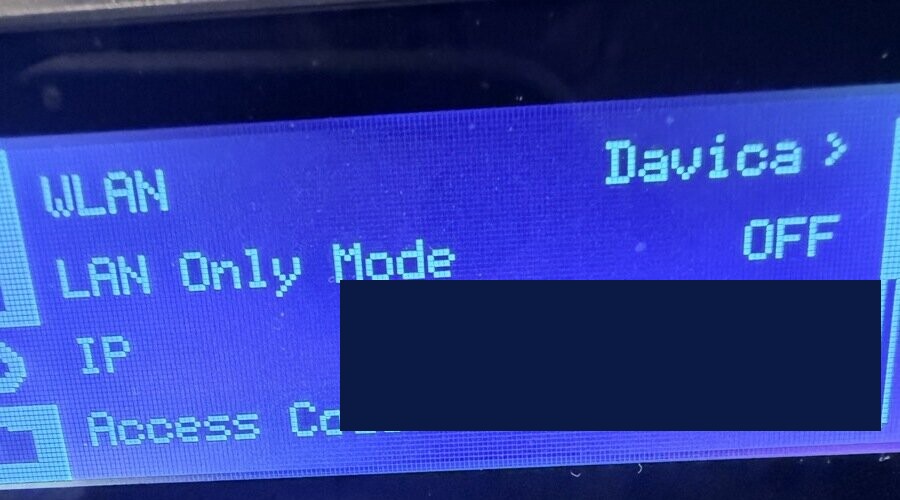

1. On the printer's touchscreen, open Settings, then the Network (WLAN) page. It shows the network name, IP address, the LAN Only Mode toggle, and the access code.

2. Turn LAN Only Mode on. This enables the local MQTT and FTPS services the server uses. It also disconnects the printer from Bambu's cloud, so the Bambu Handy app stops working while it is on; slicers can still connect over LAN.
3. On firmware that provides it, turn Developer Mode on in the same LAN settings.

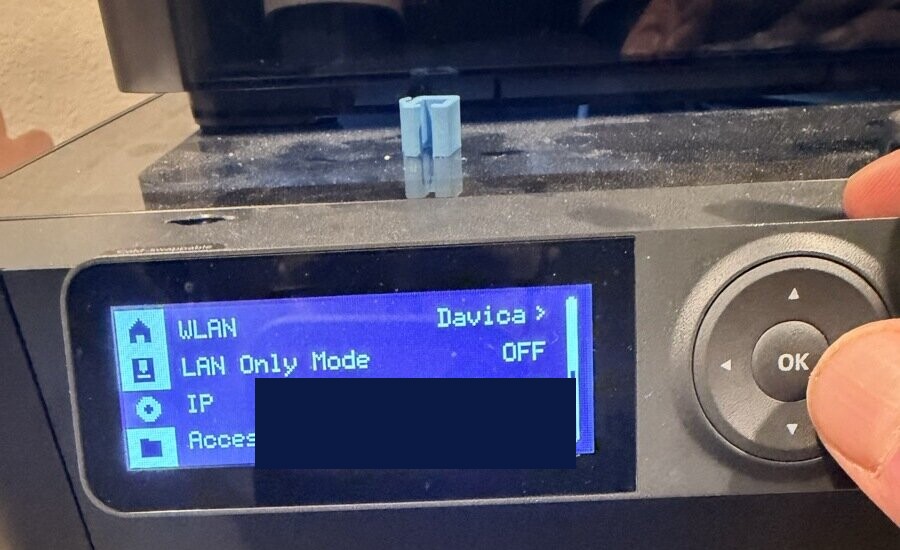

4. Note the Access Code. It is your BAMBU_TOKEN. Refreshing it disconnects clients that use the old code.

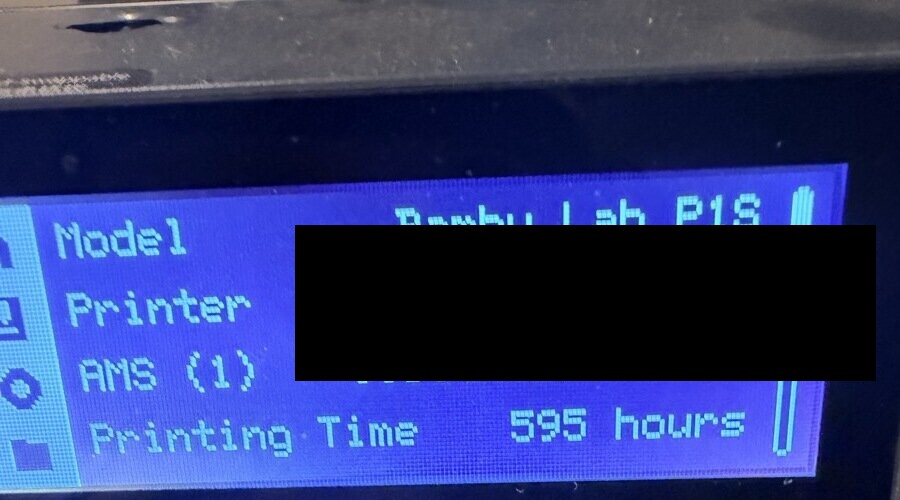

Find the serial number

The serial number is on a sticker on the back or underside of the printer, and on the touchscreen under Settings > Device Info. P1 series serials usually begin with 01P, X1 series with 01X, and A1 series with 01A. Bambu Studio also shows it under Device > Device Management.

Find the access code

• P1 series (P1P, P1S): Settings > Network / WLAN. The access code is at the bottom of the screen.
• X1 series (X1C, X1E): Settings > Network. Enable LAN Only Mode (and Developer Mode where offered) to see the code.
• A1 and A1 mini: In the Bambu Handy app, connect to the printer and open its Settings > Network page.

Menu names vary by model and firmware. The access code is not your Bambu account password. If a LAN or Developer Mode setting is missing, check the instructions for your exact model and firmware.

Set the model

Set BAMBU_MODEL to one of p1s, p1p, x1c, x1e, a1, a1mini, or h2d. Print tools refuse to guess: without a model they ask through MCP elicitation when the client supports it, or return an error. G-code for the wrong model can crash the bed into the nozzle.

How the server talks to Bambu printers

• MQTT (port 8883, TLS): Commands and status reports use the printer's own MQTT broker with username bblp and the access code. Status requests a full report (pushall) and returns temperatures, job state, progress, layers, time remaining, and raw AMS data. The implementation follows community documentation such as OpenBambuAPI.
• FTPS (port 990, implicit TLS): Uploads use basic-ftp directly with TLS 1.2 on both channels and TLS session reuse, which the printer requires. This addresses the "Premature close" failures in #22 and avoids the double-path upload bug in bambu-js. File listing still uses bambu-js helpers. The printer uses a self-signed certificate, so the connection assumes a trusted local network.
• Printing: print_3mf uploads a sliced .3mf to cache/ and sends a project_file command with the plate's G-code path and MD5. start_print starts a plain .gcode file already on the printer.

Prusa (PrusaLink and Prusa Connect)

• PrusaLink (local): Set PRINTER_TYPE=prusa, PRINTER_HOST to the printer's address, and API_KEY to the PrusaLink API key. Local hosts use HTTP unless you give an https:// host or port 443.
• Prusa Connect (cloud): Set PRINTER_HOST=connect.prusa3d.com with PRINTER_PORT=443, or PRINTER_HOST=https://connect.prusa3d.com. The server normalizes both forms to HTTPS. Cloud access through this adapter has not been confirmed on hardware; see #9.

The adapter sends the key as both X-Api-Key and Authorization: Bearer. If a PrusaLink install only accepts username/password (HTTP digest) authentication, this adapter cannot authenticate yet. Requests try newer routes first and fall back on 404, 405, or 501: status tries /api/v1/status, then /api/v1/printer, then /api/printer (the PrusaLink 0.8.1 fix for #11); files try /api/v1/storage, then /api/files, then /api/files/local. start_print of a file already on the printer is refused because no verified download route exists; upload the local G-code with print: true.

Creality

Set PRINTER_TYPE=creality, PRINTER_HOST, PRINTER_PORT if not 80, and API_KEY to a bearer token. The adapter calls /api/device/status, /api/storage/list, /api/storage/info, /api/storage/upload, /api/job/start, /api/job/cancel, and /api/printer/temperature over HTTP with Authorization: Bearer <API_KEY>. None of these routes has been verified against Creality Cloud or stock Creality firmware. start_print of a file already on the printer is refused; upload the local G-code with print: true.

If your Creality printer runs Klipper with Moonraker reachable on the network, as with the K1 Max in #16, use PRINTER_TYPE=klipper instead.

---

Blender MCP (optional)

Blender MCP lets your agent model or refit parts in Blender, for example refitting a downloaded model before slicing, and export a verified STL. Printer tools work without it. The Blender guide covers setup, units, and a worked phone-case example.

1. Install Blender, uv, and the mcp-for-blender Blender addon (uvx mcp-for-blender install-addon, or install its addon.py in Blender's add-on preferences). Enable the addon and keep Blender open: the addon does not run in background mode.
2. Set BLENDER_MCP_COMMAND to the full path of uvx and BLENDER_MCP_ARGS to ["mcp-for-blender"]. The project was formerly published as blender-mcp; uvx blender-mcp still works as a compatibility wrapper.
3. Ask your agent to call blender_mcp_status with {"connect": true}. That initializes the MCP server and lists its tools by name; it does not prove the addon inside Blender is connected. A get_scene_info call through blender_mcp_call checks the addon.

Blender and this server must see the same local file paths. See the Blender tool reference for blender_mcp_status, blender_mcp_call, blender_mcp_export_stl, and blender_mcp_edit_model.

---

Running with Docker

The repository includes a Dockerfile (Node.js 24 on Alpine, running as a non-root user) and a docker-compose.yml.

1. Copy .env.example to .env and fill in your backend's values.
2. Build the image:

docker build -t mcp-3d-printer-server .

3. Run it over stdio for an MCP client, with host networking so it can reach printers on your LAN:

docker run --rm -i --network host --env-file .env mcp-3d-printer-server

Docker's --env-file reads each value literally, including any trailing # comment. Remove inline comments (such as the one after SLICER_TYPE in .env.example) or pass values with -e instead. Host networking behaves this way on Linux; on Docker Desktop, check that the container can reach your printer's address.

To serve streamable HTTP instead, add -e MCP_TRANSPORT=streamable-http -e MCP_HTTP_HOST=0.0.0.0 and set MCP_HTTP_ALLOWED_ORIGINS for any browser clients. scripts/docker-run.sh builds and runs the image with the variables from .env.

The image does not include a slicer, and a slicer installed on the host generally cannot run inside the container. To slice in Docker, install a Linux build of your slicer in a derived image and set SLICER_PATH to its path inside the container. Printing files that are already sliced needs no slicer.

---

Streamable HTTP transport

stdio is the default and what most local MCP clients use. For a long-running service, start the HTTP transport:

MCP_TRANSPORT=streamable-http MCP_HTTP_PORT=3000 npx -y mcp-3d-printer-server

The endpoint is http://127.0.0.1:3000/mcp by default. The server binds to 127.0.0.1 unless you set MCP_HTTP_HOST. It has no built-in authentication, so keep it on a trusted network and restrict browser origins with MCP_HTTP_ALLOWED_ORIGINS.

---

Troubleshooting

• The server starts but printer calls fail: check PRINTER_TYPE, PRINTER_HOST, and PRINTER_PORT first. The port defaults to 80 for every backend.
• Klipper returns 401 or 403: Moonraker is enforcing authorization. Add the MCP host to trusted_clients.
• Bambu uploads fail with "Premature close": update to 1.2.9 or later, which negotiates the TLS session reuse the printer requires.
• Bambu print tools ask for or reject the model: set BAMBU_MODEL to your exact model. Do not substitute a similar model.
• "No confirmation was received within 10 minutes": nobody answered the prompt in time, so nothing was sent. Ask again when you are at the printer, or raise PRINT_CONFIRMATION_TIMEOUT_MS.
• "The printer rejected its LAN access code" (Bambu, MQTT "Not authorized" or FTPS 530): the access code changes when LAN mode is toggled and after some resets. Read the current code on the printer under Settings > Network (WLAN) and update BAMBU_TOKEN.
• Prints or heating are refused because the client cannot ask for confirmation: use an MCP client that supports elicitation. For a deliberately headless setup, set PRINT_REQUIRE_CONFIRMATION=0; the first print after a finished job still needs a person to confirm the bed is clear.
• A print is refused for a missing material: the G-code has no ; filament_type line. Pass material (for example PLA) to the print or heating tool.
• "The printer rejected the print command (HMS 0500-0500-0001-0007)": Bambu firmware 01.08.05 and later only accept third-party LAN control with LAN Only Mode and Developer Mode on (Settings > WLAN on the printer). LAN Only Mode turns off cloud and Bambu Handy remote access while it is on. Or start the uploaded file from Bambu Studio or the printer's screen.
• "Printer nozzle 0 type is unknown or does not match the job": the file was sliced for a different nozzle material than the printer reports (a stock P1S preset assumes stainless steel). Slice again with nozzle_type or set BAMBU_NOZZLE_TYPE.
• print_3mf rejects the bed type: pass the bed_type the plate was sliced for, or slice again for the plate you have installed.
• A Bambu slice stops before the slicer runs: the exact <model> <nozzle> nozzle preset is missing from the selected installation, or SLICER_PROFILE lists a machine preset. See Bambu-compatible slicing.
• A per-call slicer_path or bridge_command is rejected: configure the executable in the server environment instead. See executable settings.
• The MCP client lists no tools: restart or reload the client after changing its configuration, and check the client's MCP logs for the server's startup error.
