ragweld Documentation

• Tri-brid Retrieval

  ---

  Parallel Vector (pgvector), Sparse (PostgreSQL FTS/BM25), and Graph (Neo4j) search fused with configurable strategies.

• MLOps Engineering Platform

  ---

  Synthetic data, training studios, eval drilldowns, tracing, routing, and ops controls built into one workflow.

• Pydantic Is The Law

  ---

  All configuration and API shapes live in server/models/tribrid_config_model.py. Everything else derives from it.

• PostgreSQL Backbone

  ---

  Chunk storage, embeddings, pgvector indexing, and FTS in one database.

• Knowledge Graph

  ---

  Neo4j stores entities/relationships and supports traversal for cross-file context.

• API-First

  ---

  FastAPI endpoints for indexing, retrieval, graph, models, health, metrics, and training.

• Operational Safety

  ---

  Field constraints, readiness gates, metrics, and cost-aware model selection.

Get started Configuration Config reference API

Naming: ragweld vs tribrid

The repo/product is ragweld. Many internal names still say tribrid (config keys, module names, older docs). Treat tribrid as stable internal naming; don’t mass-rename it.

Read This First

ragweld is strictly Pydantic-first. If a field or feature is not in server/models/tribrid_config_model.py, it does not exist. Add it there, regenerate TypeScript types, then build the rest.

Terminology — corpus vs repo_id

The API still accepts repo_id for legacy reasons. Treat it as the corpus identifier. Pydantic models use AliasChoices("repo_id", "corpus_id") and serialize as corpus_id.

Security

Keep .env out of version control. Restrict database access. Use strong passwords for PostgreSQL and Neo4j. Rotate API keys regularly.

What ragweld does as an MLOps Engineering Platform

Feature	Description	Status
Vector Search	Dense similarity via pgvector in PostgreSQL	✅ Active
Sparse Search	PostgreSQL FTS/BM25 for exact terms, identifiers	✅ Active
Graph Search	Neo4j traversal to follow entities/relations	✅ Active
Fusion	Weighted/reciprocal-rank fusion of sources	✅ Active
Reranker	Optional cloud/learning reranking	✅ Active
Synthetic Data Lab	Recipe-driven generation for eval datasets, semantic cards, and triplets	✅ Active
Training Studios	LoRA training workbenches for reranker and agent model	✅ Active
Eval + Drilldown	Run comparisons and per-query diagnostics for regressions	✅ Active
Tracing + Grafana	Local traces plus embedded observability dashboards	✅ Active
Routing + Model Catalog	Local/cloud model routing with catalog refresh and custom models	✅ Active

Product Screenshots

These screenshots are taken from recent production UI surfaces and map to the same workflows documented throughout this site.

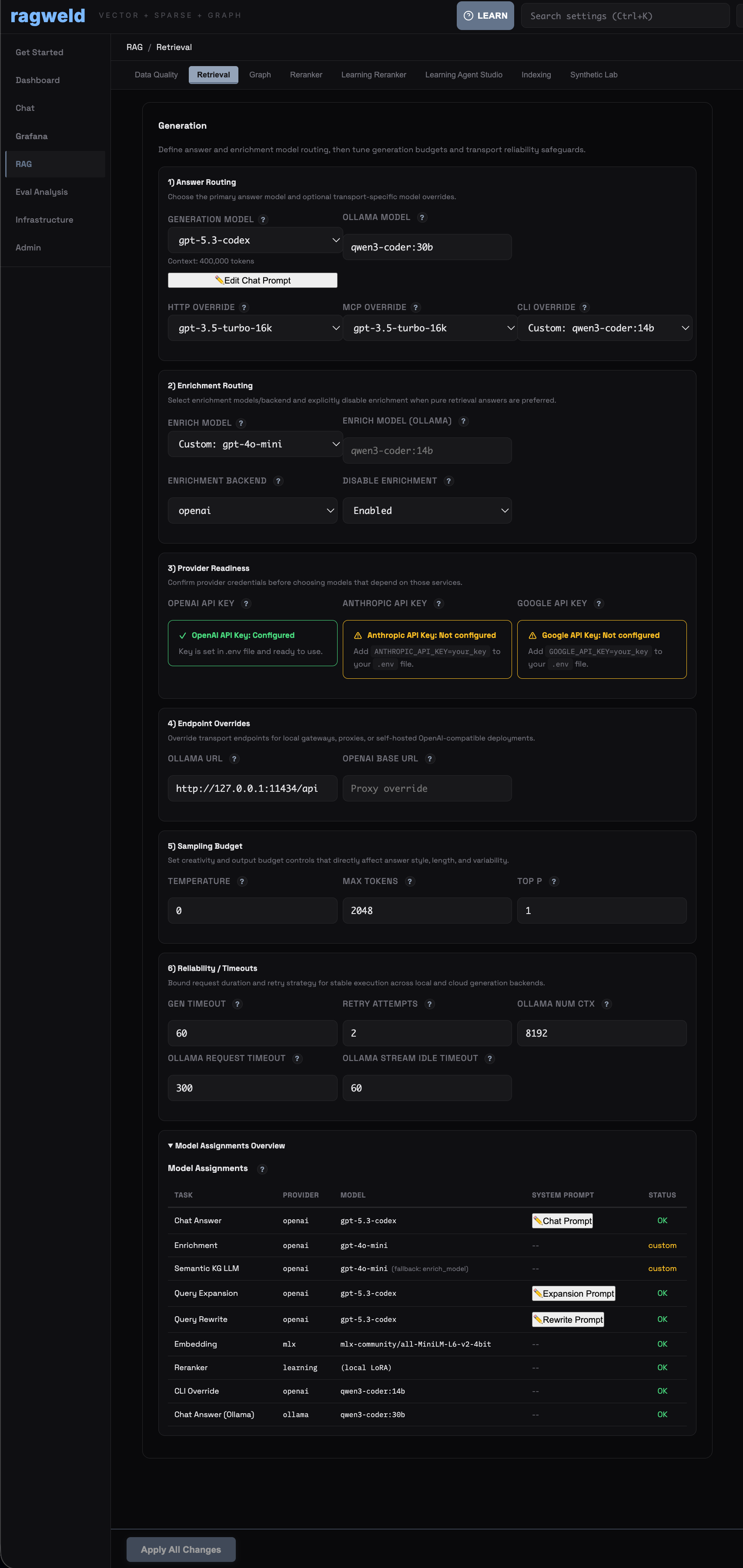

API routing first, MCP layered per channel

• API docs: API
• MCP docs: MCP integration

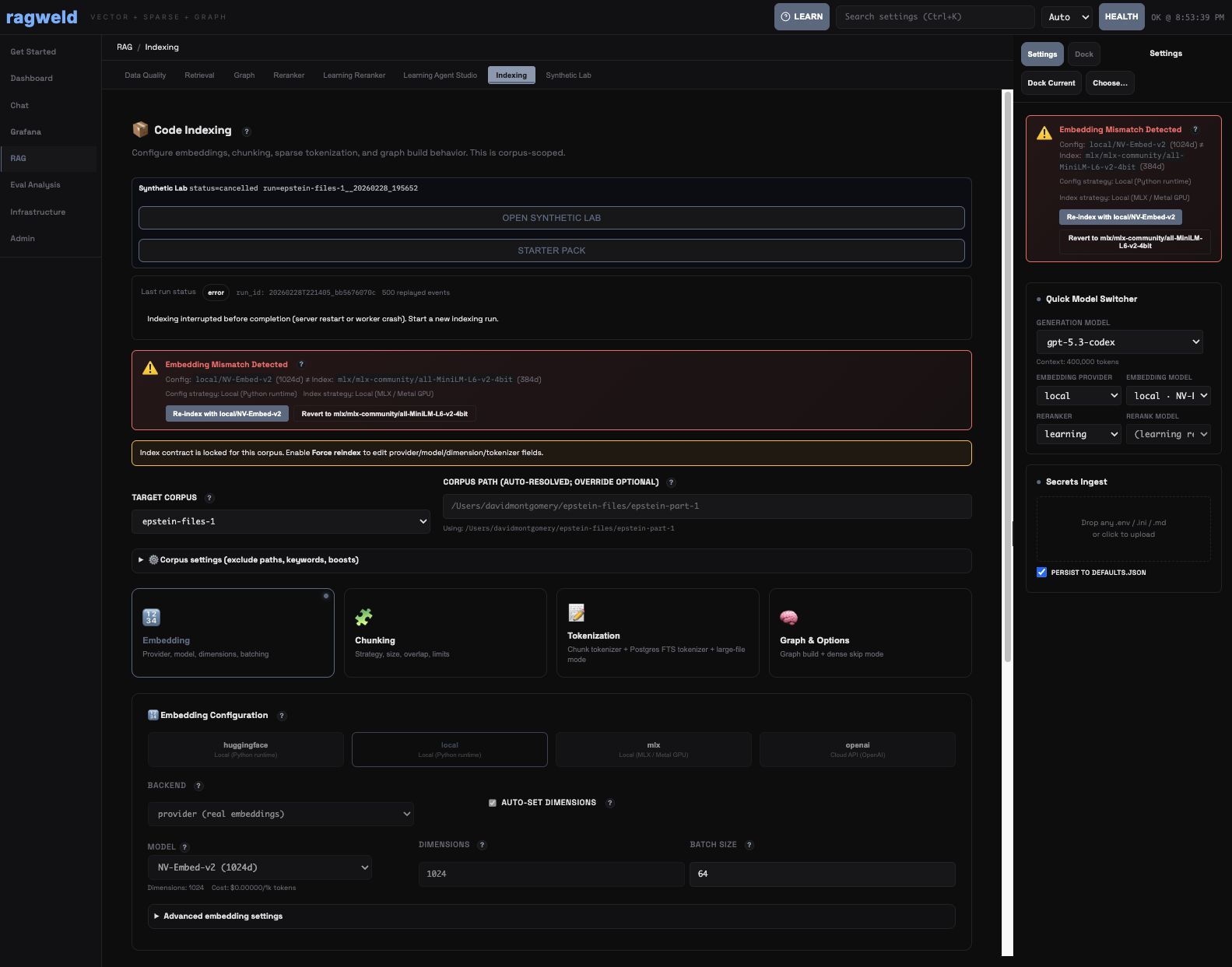

Indexing guardrails and model-mismatch detection

• Indexing guide: Indexing a corpus
• Config reference: Indexing config

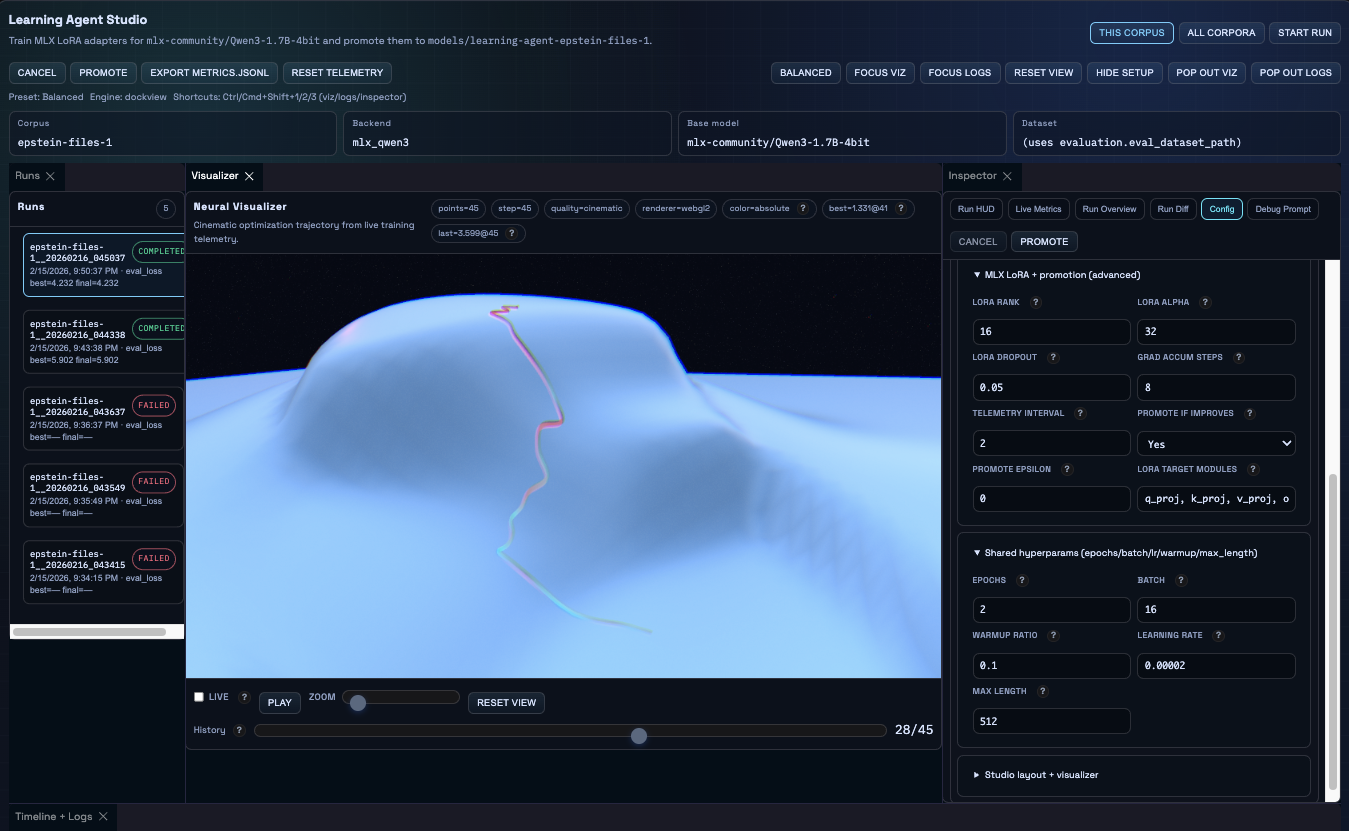

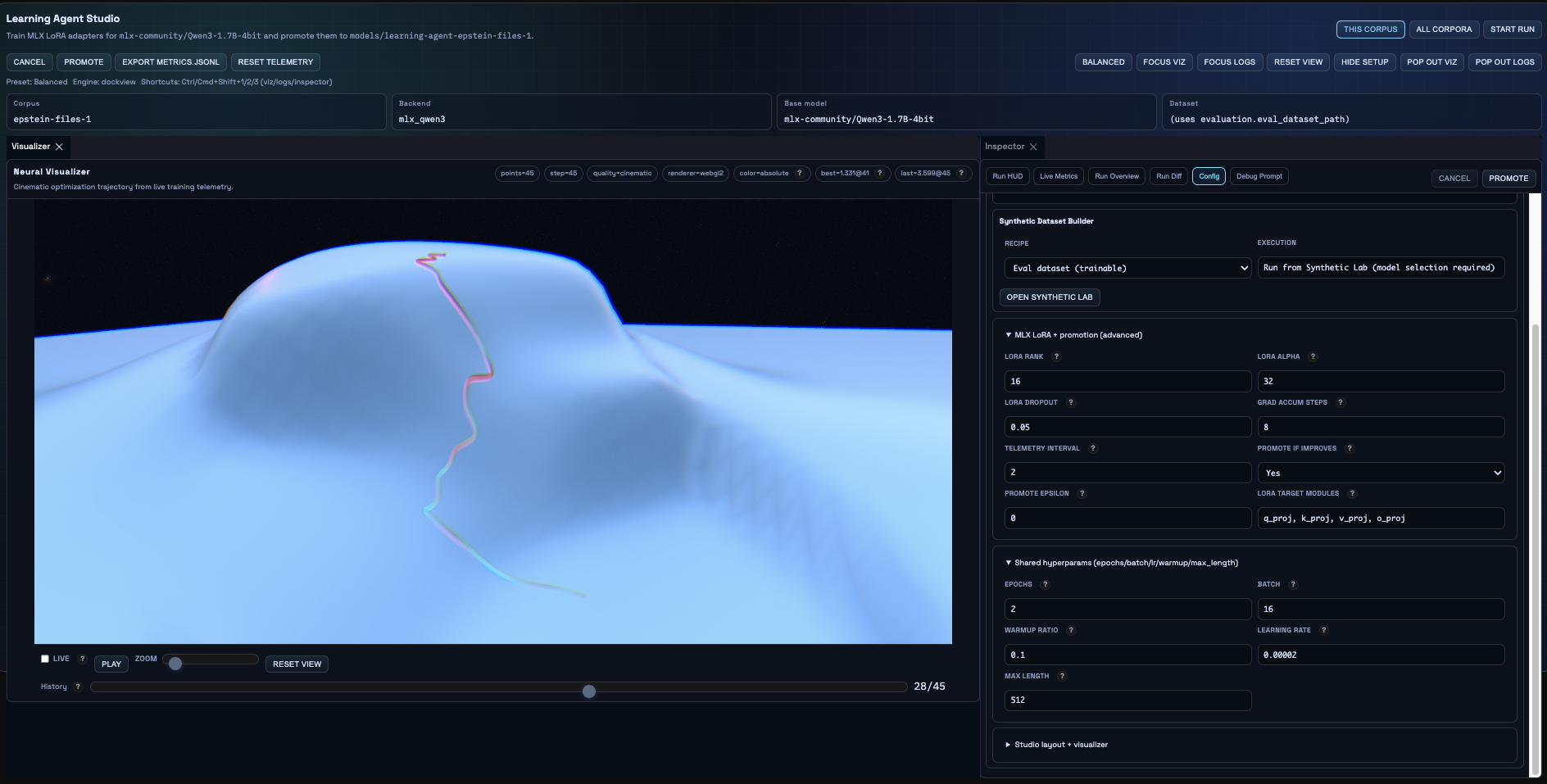

Learning studios and live training telemetry

• Training reference: Training config
• Workflow guide: Reranker how-to

Graph explorer and retrieval inspection

• Retrieval overview: Retrieval concepts
• Graph controls: Graph search config

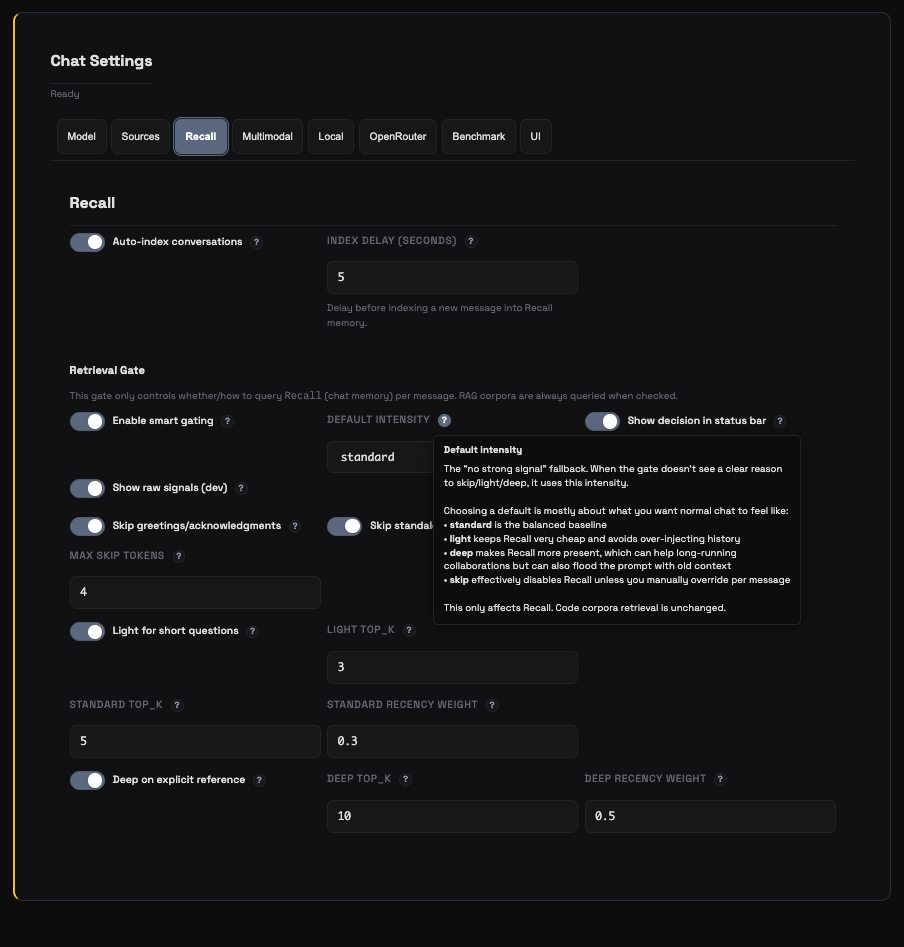

Recall gating and chat memory controls

• Chat reference: Chat config
• Caching reference: Semantic cache config

End-to-End Retrieval Flow

flowchart LR
    Q["Query"] --> V["Vector Search (pgvector)"]
    Q --> S["Sparse Search (PostgreSQL FTS)"]
    Q --> G["Graph Search (Neo4j)"]
    V --> F["Fusion Layer"]
    S --> F
    G --> F
    F --> R["Reranker (optional)"]
    R --> O["Results"]
    F --> O

Quickstart — Run, Index, Search

• Configure environment (.env)
• Launch services with Docker Compose
• Regenerate TypeScript types from Pydantic
• Index a corpus
• Search via API
• Tune fusion weights and confidence thresholds
• Enable reranking if needed

Use Ctrl+C to stop local uvicorn or Docker tail sessions.

Python

import httpx, subprocess

BASE = "http://127.0.0.1:8012/api"

# 1) Generate TS types from Pydantic (required for UI) (1)!
subprocess.check_call(["uv", "run", "scripts/generate_types.py"])  # (1) Types derive from Pydantic

# 2) Trigger indexing of a corpus (2)!
req = {
    "corpus_id": "tribrid",  # (3)! repo_id alias is also accepted
    "repo_path": "/path/to/your/codebase",
    "force_reindex": False,
}
httpx.post(f"{BASE}/index", json=req).raise_for_status()

# 3) Poll status (4)!
status = httpx.get(f"{BASE}/index/tribrid/status").json()
print(status)

# 4) Search (parallel vector/sparse/graph -> fusion -> optional rerank) (5)!
payload = {
    "corpus_id": "tribrid",
    "query": "How does the chunker split Python files?",
    "top_k": 8,
}
res = httpx.post(f"{BASE}/search", json=payload).json()
for m in res.get("matches", []):
    print(m["file_path"], m["score"])  # fused score

1. Pydantic → generated types is a hard contract
2. Start an indexing job for your corpus
3. Inputs accept repo_id but serialize as corpus_id
4. Poll index status to show progress in UI
5. Search runs vector/sparse/graph in parallel, fuses, then optionally reranks

curl

BASE=http://127.0.0.1:8012/api

# Start indexing (1)!
curl -sS -X POST "$BASE/index" \
  -H 'Content-Type: application/json' \
  -d '{
    "corpus_id": "tribrid",
    "repo_path": "/path/to/your/codebase",
    "force_reindex": false
  }'

# Status (2)!
curl -sS "$BASE/index/tribrid/status" | jq .

# Search (3)!
curl -sS -X POST "$BASE/search" \
  -H 'Content-Type: application/json' \
  -d '{
    "corpus_id": "tribrid",
    "query": "How does the chunker split Python files?",
    "top_k": 8
  }' | jq '.matches[] | {file_path, score}'

1. Kick off corpus indexing
2. Verify progress and current file
3. Run tri-brid retrieval

TypeScript

// Ensure ./web/src/types/generated.ts exists (generated by Python) (1)!
import type { IndexRequest, SearchRequest, SearchResponse } from "./web/src/types/generated";

async function indexAndSearch() {
  const base = "http://127.0.0.1:8012/api";

  const indexReq: IndexRequest = {
    corpus_id: "tribrid", // (2)! repo_id alias also accepted server-side
    repo_path: "/path/to/your/codebase",
    force_reindex: false,
  };
  await fetch(`${base}/index`, {
    method: "POST",
    headers: { "Content-Type": "application/json" },
    body: JSON.stringify(indexReq),
  });

  const searchReq: SearchRequest = {
    corpus_id: "tribrid",
    query: "chunker split Python",
    top_k: 8,
  } as any;

  const r = await fetch(`${base}/search`, {
    method: "POST",
    headers: { "Content-Type": "application/json" },
    body: JSON.stringify(searchReq),
  });
  const data: SearchResponse = await r.json(); // (3)!
  console.log(data.matches.map(m => [m.file_path, m.score]));
}

1. Import only generated API types
2. Scoped by corpus_id (alias of legacy repo_id)
3. Response includes fused matches and timings

Architecture Overview

flowchart TB
    subgraph Client
      U["User / UI / API Client"]
    end

    U --> A["FastAPI"]
    A --> V["VectorRetriever\n(Postgres+pgvector)"]
    A --> S["SparseRetriever\n(Postgres FTS)"]
    A --> G["GraphRetriever\n(Neo4j)"]
    V --> F["Fusion"]
    S --> F
    G --> F
    F --> R["Reranker\n(optional)"]
    R --> O["Final Results"]
    F --> O

    subgraph Storage
      P["PostgreSQL"]
      N["Neo4j"]
    end

    V <--> P
    S <--> P
    G <--> N

Advanced Topics

• Fusion math: weighted linear combination and Reciprocal Rank Fusion with configurable fusion.rrf_k.
• Retrieval cache: cache keys include corpus_id, query, and a hash of the retrieval config subset.
• Failure isolation: vector, sparse, and graph legs are resilient; a failure in one leg degrades gracefully.
